95 LS

from €100,800

Power of a new generation

The Lintrac 95 LS is equipped with the new and particularly clean Perkins Syncro level 5 engine. With its 3.6-litre capacity and 75 kW output (corresponds to 102 hp) as well as a huge torque of 430 Nm, the Lintrac 95 LS is a powerful all-round tractor for combined operations. Whether grassland, arable farming, maintenance or forestry work - its small size proves its worth in many areas. Equipped with a ZF power shift transmission from Steyr with 4-speed PTO shaft, and powerful working hydraulics from Bosch-Rexroth with axial piston pump, it can also cope with tough operations.

At a glance

engine

Motor

PERKINS Syncro 904J-E36TA
75 kW (102 hp)
4 cyl. / 3,600 m³
Turbo diesel engine with particle filter und SCR
Emission level 5
transmission

Transmission

16/8-gear powershift transmission
PowerShuttle, ComfortShift
40 km/h
universalJointShaft

Power take off

power shift rear PTO
430 / 540 / 750 / 1,000 rpm
EHR with AHC
hydraulics

Hydraulics

BOSCH Rexroth axial piston pump
4 to 80 l/min
separate oil balance
dimensions

Dimensions

Width 2194mm
Height 2576mm
Wheelbase 2400 mm
  • engine

    Motor

    PERKINS Syncro 904J-E36TA
    75 kW (102 hp)
    4 cyl. / 3,600 m³
    Turbo diesel engine with particle filter und SCR
    Emission level 5
  • transmission

    Transmission

    16/8-gear powershift transmission
    PowerShuttle, ComfortShift
    40 km/h
  • universalJointShaft

    Power take off

    power shift rear PTO
    430 / 540 / 750 / 1,000 rpm
    EHR with AHC
  • hydraulics

    Hydraulics

    BOSCH Rexroth axial piston pump
    4 to 80 l/min
    separate oil balance
  • dimensions

    Dimensions

    Width 2194mm
    Height 2576mm
    Wheelbase 2400 mm

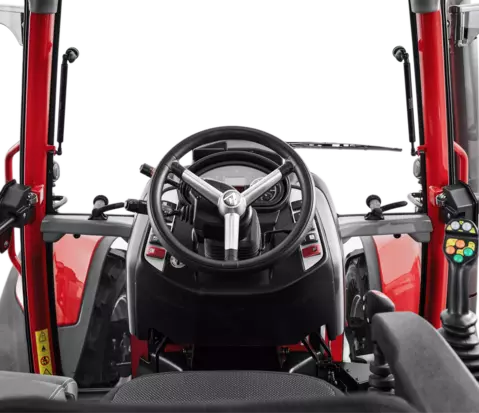

Cabin

The spring-mounted cabin is a comfortable workspace with a clear 360° view.

The panorama comfort cabin provides the best view on all sides. Fatigue-free work comes about through a pleasant working climate, comfort seat with air suspension and logically placed controls. It is particularly important in dangerous situations to be able to find the switches and levers quickly so as to react correctly. The I.B.C. monitor is the central display. The comfortable I.B.C. remote control on the armrest puts the driver in the best seating position.

Openable front window

Comfort for driver and co-driver

I.B.C. Central info board

Clearly organized

Motor

The Perkins Synchro with 3.6 litres capacity delivers 75 kW / 102 hp. It offers an enormous torque of 430 Nm at 1,000 rpm with a very steep torque increase of over 40%. These characteristics ensure powerful starting behaviour on slopes and when pulling. The particulate filter achieves exhaust level 5. This is comparable with the EURO 6 emissions class applicable to cars and trucks.

Perkins high-performance unit

  • more power
  • more torque
  • more capacity
  • lower consumption
  • less exhaust
  • less noise and vibration
  • easy to maintain

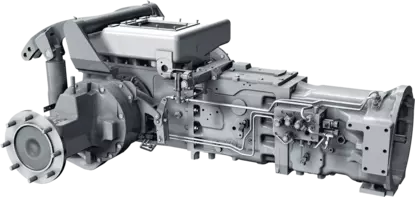

Transmission

16/8-gear powershift transmission

The Lintrac 95 LS has a ZF-Steyr power shift transmission with 16 forwared 8 reverse gears as standard. The duplex power shift with automating function (speed-matching) comes as standard. This function automatically adapts the power shift gear level during gear changes. The system also allows manual gear selection. The power shuttle can be operated via the direction lever on the steering wheel or via the optional multicontroller. The buttons for the standard comfort clutch are located on the gear lever. An optional travel ground speed PTO shaft is also available. The powerful rear PTO shaft has 4 PTO shaft speeds. The Lintrac 95 LS delivers over 80 hp on the PTO shaft. The PTO shaft starting control allows jerk-free, low wear and safe transmission of power. Three different start-up curves (light, medium, hard) can be selected. The PTO shaft is operated at the touch of a button in the cab or on the rear mud guards.

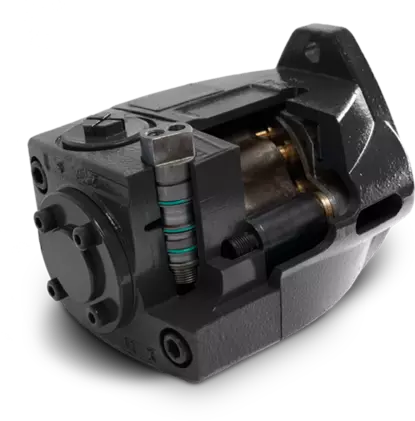

Hydraulics

BOSH Rexroth axial piston pump

The Lintrac 95 LS has BOSCH Rexroth high-performance hydraulics and an output of 80 litres/min. The Lintrac operates with an axial piston pump, which regulates the hydraulic power steplessly from 4 to 80 l/min. The exact amount of oil required is conveyed at all times. This eliminates power losses. As standard the Lintrac 95 LS has three double-acting control modules with float position. These load-sensing control modules can be extended by up to two control modules - on request also through electrical EHS valves. All hydraulic connections are provided with high-quality hydraulic clutches. The electronic hitch control EHR in the Lintrac 95 LS is equipped with AHC. As with all Lindner vehicles, the Lintrac has a separate oil supply for the power hydraulics/steering and the transmission.

With the multicontroller the most important BOSCH hydraulic functions can be operated with one hand without having to change the grip. This guarantees safety and increases operating comfort. In the Lintrac 95 LS even the direction of travel can be changed. The multicontroller is produced in a Bosch-Rexroth special component factory in France.

Light

The Lintrac 95 LS is equipped with LED tail lights and daytime running lights. The light-emitting diodes are particularly energy-saving and - with over 20,000 operating hours - match the service life of the tractor. In addition, the Lintrac is equipped with extremely bright bi-halogen headlights for high beam and low beam.

Bright LED work lights are available on request. Extremely clearly visible LED all-round lights and lightning bars are used for municipal use.

Intelligent light

Bright H7 halogen or LED work lights are available on request. Extremely clearly visible LED all-round lights and lightning bars are used for municipal use. In order to draw attention to special applications, LED flashing lights are used that fit perfectly into the TracLink roof shell - without any disadvantages for the overall height.

LED work lights

LED headlights

Dimensions

Dimensions, tires & color selection

Perm. total weight
7500 kg
Max. rear axle load
5000 kg
Max. front axle load
3000 kg
Wheelbase
2400 mm
Partial height (E)
1810 mm
Length (A) with standard tires
4130 mm
External width (B) with standard tires
2194 mm
Height (C) with standard tires
2576 mm

All information relates to the version with rear-axle steering - please refer to the brochure for dimensions without rear-axle steering.

Rear tires Front tires Track (D) Outside width (B) height (C)
600/65-30 420/75-20 1700 2270 2557
420/85-30 380/70-20 1640 2112 2526
540/65-34 440/65-24 1700 2226 2575
480/70-34 380/70-24 1700 2194 2576
600/65-34 480/65-24 1700 2272 2606
420/85-34 380/70-24 1700 2171 2526

Color RAL-Nr. 3001
