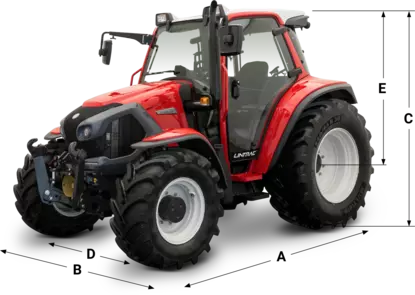

Simply unbelievable manoeuvrability
The Lintrac is the first continuously variable, standard tractor with steering rear axle which can achieve incredible manoeuvrability. The optimum performances from a tractor, a slope mower and a farmyard loader are combined in one efficient vehicle. The ZF continuously variable technology, combined with a simple and practically-orientated operating concept from Lindner, make successful working with Lintrac child´s play.
At a glance
-
Engine
PERKINS 854E-E34TA
75 kW (102 hp)
4 Zyl. / 3.400 cm³
Turbo diesel engine with Common-Rail-injection und particulate filter system -
Transmission
TMT09 - ZF stepless transmission
40 km/h
Optional: stationary PTO, Lindner rear axle steering with 4 steering modes -
Power take off
power shift rear PTO
430 / 540 / 750 / 1,000 rpm -
Hydraulics
BOSCH Rexroth
variable displacement pump
4 bis 88l/min
separate oil cicuits -
Dimensions
Width 1978mm
Height 2453mm
Wheelbase 2264 mm
Cabin
The spring-mounted cabin is a comfortable workspace with a clear 360° view.
The panorama comfort cabin provides the best view on all sides. Fatigue-free work comes about through a pleasant working climate, comfort seat with air suspension and logically placed controls. It is particularly important in dangerous situations to be able to find the switches and levers quickly so as to react correctly. The I.B.C. monitor is the central display. The comfortable I.B.C. remote control on the armrest puts the driver in the best seating position.
Get in and drive!
Get in and drive: Every driver is a professional with the simple control dial. It is easy to drive the Lintrac: Start the engine, pick the direction, step on the gas and steer. Using the LDrive control dial on the armrest makes for very efficient work.
If the LDrive is activated, rotating the dial sets the speed of travel in a dynamic and infinitely variable manner. Rapid selection buttons are provided for all-wheel, differential, cruise-control memory, creep function, hand & foot accelerator mode and the various driving modes.
Engine
The Perkins 3.4 l Turbo-Diesel puts out 75 kW/102 HP. It develops an enormous torque of 420 Nm at 1400 rpm with a very steep torque slope of greater than 40%. These characteristics provide powerful starting on a slope and for traction tasks. Together with the TMT09 transmission, the engine can run at a reduced speed providing very low consumption figures. Emission level 3b is achieved with the particle filter.

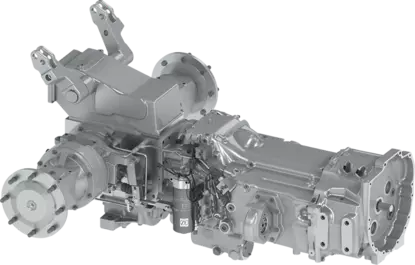

Transmission
TMT09 - ZF stepless transmission
The TMT09 is the first continuously variable transmission specially developed for a take-off power of about 90 HP. Compact lightweight design was particularly important here. The transmission is particularly efficient due to the power transmission that is mechanical for the most part with a small hydrostatic proportion. Driving is infinitely variable from -20 to +43 km/h at a reduced engine speed. The 4-point rear power take-off with start control operates at 430/540/750/1000 rpm as desired.

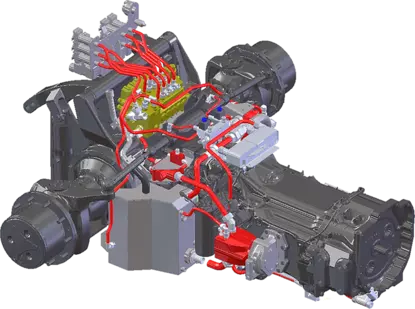

Hydraulics
BOSCH Rexroth
The Lintrac operates with an axial piston pump that regulates the hydraulic power from 4 to 88 l/min on an infinitely variable basis. The exact oil volume needed is just what is provided. This eliminates power losses. Up to 5 EHS control units with volume setting are possible. These operate on a proportional basis and are particularly sensitive. As with all Lindner vehicles, the Lintrac has a separate oil supply for the power hydraulics/steering and the transmission.

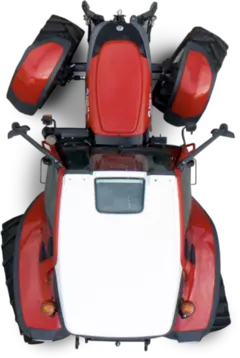

4-wheel steering
The steering rear axle enables unprecedented maneuverability.
The Lintrac is the first standard tractor with a steering rear axle. During the development, Lindner was able to build on decades of experience with 4-wheel steering in mountain farming and municipal use with the Unitrac transporter. Extremely stable joint housings made of spheroidal graphite iron are used here. On request, the rear axle can steer up to 20 °, giving the Lintrac a maneuverability that was previously unattainable for tractors.
The Lintrac is extremely manoeuvrable even without a steering rear axle. Thanks to the compact wheelbase and 52 ° steering angle at the front, it achieved a turning circle diameter of 9.5 m. With 4-wheel steering, a sensational turning circle diameter of less than 7 m is achieved. The rear wheels are turned up to 20 °. “Crab steering” is also possible. (Measured with tires 480/70-R28 at the rear and 420/65-R20 at the front on the Lintrac 90)
20°

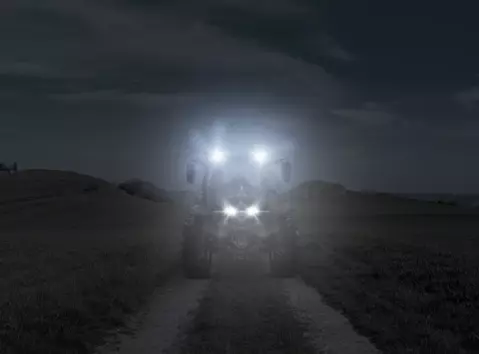

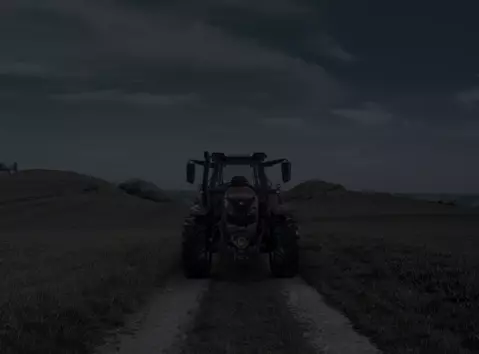

Light
The Lintrac is equipped with LED rear lights, daytime running lights and LED work lights. The light-emitting diodes are particularly energy-saving and last the life of the tractor with over 20,000 operating hours.
In addition, the Lintrac has powerful bi-halogen headlights for high and low beam. The LED taillight arch on the Lintrac 110 & 130 ensures the best visibility at night.
Intelligent light
Bright H7 halogen or LED work lights are available on request. Extremely clearly visible LED all-round lights and lightning bars are used for municipal use. In order to draw attention to special applications, LED flashing lights are used that fit perfectly into the TracLink roof shell - without any disadvantages for the overall height.
Dimensions
Dimensions, tires & color selection
- Perm. total weight
- 6400 kg
- Max. rear axle load
- 3800 kg
- Max. front axle load
- 3000 kg
- Wheelbase
- 2264 mm
- Partial height (E)
- 1712 mm
- Length (A) with standard tires
- 3442 mm
- External width (B) with standard tires
- 1978 mm
- Height (C) with standard tires
- 2453 mm
All information relates to the version with rear-axle steering - please refer to the brochure for dimensions without rear-axle steering.
| Rear tires | Front tires | Track (D) | Track (D) with 4-wheel steering | Outside width (B) | Outside width (B) with 4-wheel steering | height (C) |
|---|---|---|---|---|---|---|
| 480/70-28 | 420/65-20 | 1556 | 1557 | 2036 | 2037 | 2384 |
| 540/65-28 | 420/65-20 | 1556 | 1557 | 2083 | 2084 | 2284 |
| 420/85-28 | 375/70-20 | 1516 | 1517 | 1978 | 1979 | 2453 |
| 460/85-30 | 425/75-20 | 1576 | 1577 | 2092 | 2093 | 2447 |
| 480/70-30 | 420/65-20 | 1576 | 1577 | 2074 | 2075 | 2409 |
| 540/65-30 | 420/65-20 | 1576 | 1577 | 2102 | 2103 | 2415 |
| 600/65-30 | 425/75-20 | 1696 | 1697 | 2266 | 2267 | 2443 |
Downloads
-
![Lintrac 90 / 110 / 130]()
Lintrac 90 / 110 / 130 PDF / 5 MB

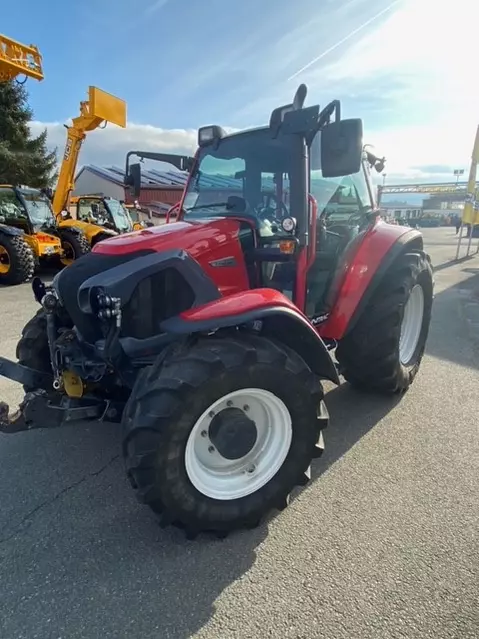

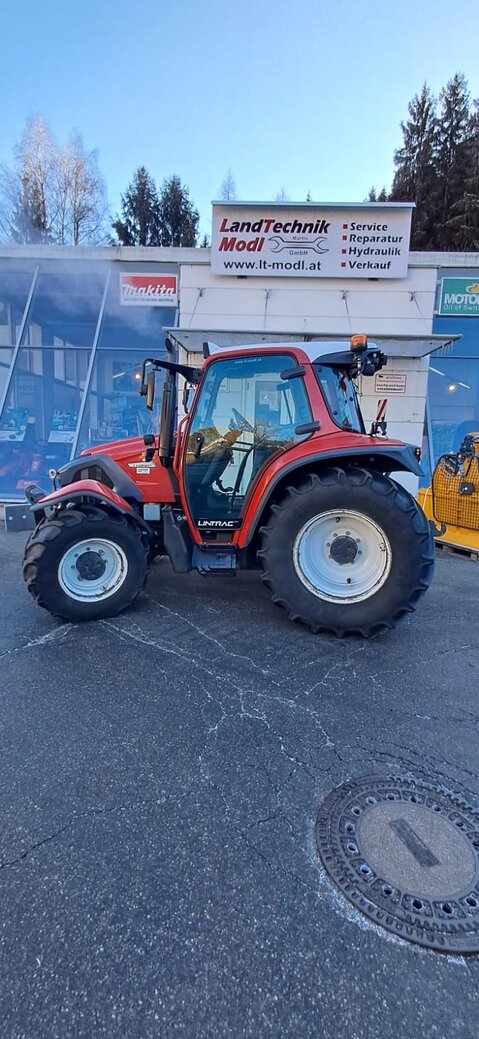

Lintrac 90
