75
LS
Power of a new generation

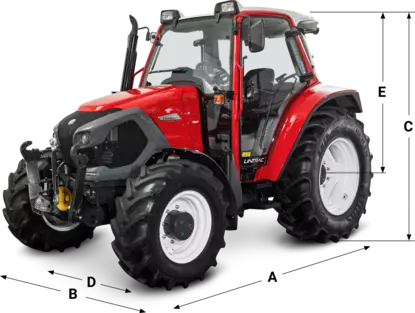

The Lintrac 75 LS shows its strengths as an all-round tractor in alpine mountain and grassland farming. The tractor is particularly light, manoeuvrable and impresses with its powerful hydraulics. The 3.6-liter Perkins Syncro engine of stage 5 is high-torque and particularly clean even without the AdBlue system.
At a glance
Motor
55 kw (76 hp) / 350 Nm
4-cyl. / 3,600 cm³
Turbo diesel engine with particle filter
Emission level 5
Transmission
40 km/h
Power take off
430 / 540 / 750 / 1,000 rpm
Hydraulics
Separate oil balance
Dimensions
Height 2450mm
Wheelbase 2304 mm
-
Motor
PERKINS Syncro
55 kw (76 hp) / 350 Nm
4-cyl. / 3,600 cm³
Turbo diesel engine with particle filter
Emission level 5 -
Transmission
16/16 speed ZF STEYR Power2 powershift transmission
40 km/h -
Power take off
power shift rear PTO
430 / 540 / 750 / 1,000 rpm -
Hydraulics
55 l/min
Separate oil balance -
Dimensions
Width 1978mm
Height 2450mm
Wheelbase 2304 mm
Cabin
The spring-mounted cabin is a comfortable workspace with a clear 360° view.
The panorama comfort cabin provides the best view on all sides. Fatigue-free work comes about through a pleasant working climate, comfort seat with air suspension and logically placed controls. It is particularly important in dangerous situations to be able to find the switches and levers quickly so as to react correctly. The I.B.C. monitor is the central display. The comfortable I.B.C. remote control on the armrest puts the driver in the best seating position.
Motor
The Perkins Synchro with 3.6 litres capacity delivers 55 kW / 76 hp. It offers an enormous torque of 350 Nm at 1,000 rpm with a very steep torque increase of over 40%. These characteristics ensure powerful starting behaviour on slopes and when pulling. The particulate filter achieves exhaust level 5. This is comparable with the EURO 6 emissions class applicable to cars and trucks.
Perkins high-performance unit
- more power
- more torque
- more capacity
- lower consumption
- less exhaust
- less noise and vibration
- easy to maintain
Transmission

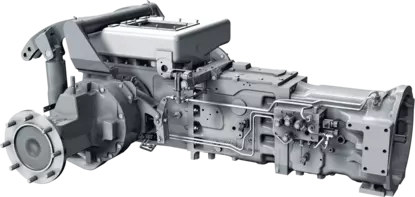

16/16 speed ZF STEYR Power2 powershift transmission
The Lintrac 75 LS is equipped with a ZF-Steyr Power2 powershift transmission. 16 forward and 16 reverse gears are standard. The standard 4-speed PTO shaft can optionally be supplemented with an electro-hydraulic PTO shaft clutch. A stationary PTO is available on request, which is particularly helpful when used as a forestry device. A ground speed PTO is also available as an option. The powerful rear PTO has 4 PTO speeds. An electro-hydraulic PTO clutch with remote control on the fender is available on request.
Hydraulics
BOSCH-Rexroth

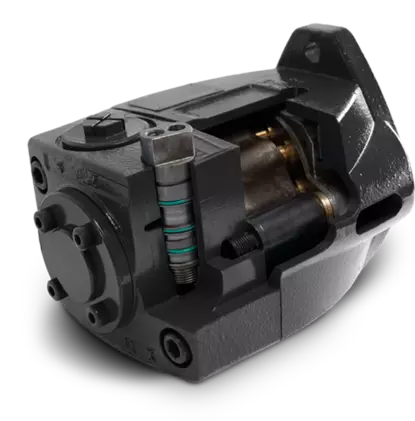

The Lintrac 75 LS has a BOSCH-Rexroth high-performance hydraulic system with a separate oil supply and an output of 55 liters / min. The hydraulic system is each equipped with its own pump for the gearbox as well as the steering and working hydraulics. The Lintrac 75 LS has three double-acting control units with floating position and single-lever operation as standard. These load-sensing control units can be expanded by up to two control units. All hydraulic connections are provided with high quality hydraulic couplings.
The hydraulic components of the Lintrac come from Bosch-Rexroth in Germany. Thanks to particularly intensive development cooperation, the control panel for EHR and EFH as well as the coordination of the control units could be further improved. Hydraulics with device relief have never been so easy to operate.
With the Multicontroller, the most important Bosch hydraulic functions can be operated with one hand without having to change your grip. This guarantees safety and increases the ease of use. The multicontroller is manufactured in a special Bosch-Rexroth component factory in France.
Light
The Lintrac is equipped with LED rear lights and daytime running lights. The light-emitting diodes are particularly energy-saving and last the life of the tractor with over 20,000 operating hours.
In addition, the Lintrac has powerful bi-halogen headlights for high and low beam. Bright LED work lights are available on request.
Intelligent light
Bright H7 halogen or LED work lights are available on request. Extremely clearly visible LED all-round lights and lightning bars are used for municipal use. In order to draw attention to special applications, LED flashing lights are used that fit perfectly into the TracLink roof shell - without any disadvantages for the overall height.
Dimensions
Dimensions, tires & color selection
- Perm. total weight
- 5800 kg
- Max. rear axle load
- 3300 kg
- Max. front axle load
- 3000 kg
- Wheelbase
- 2304 mm
- Partial height (E)
- 1750 mm
- Length (A) with standard tires
- 3437 mm
- External width (B) with standard tires
- 1978 mm
- Height (C) with standard tires
- 2450 mm
All information relates to the version with rear-axle steering - please refer to the brochure for dimensions without rear-axle steering.
| Rear tires | Front tires | Track (D) | Outside width (B) | height (C) |
|---|---|---|---|---|
| 420/85-28 | 375/70-20 | 1556 | 2015 | 2428 |
| 540/65-28 | 420/65-20 | 1556 | 2083 | 2418 |
| 420/85-30 | 375/70-20 | 1516 | 1978 | 2450 |
| 460/85-30 | 425/75-20 | 1576 | 2092 | 2485 |
| 480/70-30 | 420/65-20 | 1576 | 2071 | 2442 |
| 540/65-30 | 420/65-20 | 1576 | 2102 | 2453 |
| 600/65-30 | 425/75-20 | 1696 | 2266 | 2481 |
| 340/85-38 | 320/85-24 | 1476 | 1829 | 2496 |
Color RAL-Nr. 3001
Downloads
Model overview - Lintrac & Unitrac PDF / 8 MB

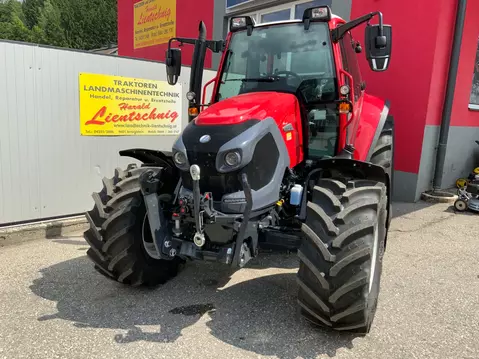

Lintrac 75 LS
