Lintrac 130

Maneuverable, stepless technology for professional users

The Lintrac 130 is the first Lindner tractor with the new and especially clean Perkins Syncro engine level 5. With a capacity of 3.6 litres and 100 kW (equivalent to 136 hp) as well as an enormous torque of 550 Nm, the Lintrac 130 is the most powerful tractor offered by Lindner - with four-wheel steering on request. Lindner has further developed the stepless TMT11 IF transmission from the Lintrac 110. The high traction mode increases the tractive force to up to eight kilonewtons. The spring-loaded front axle is standard with the 50 km/h version. The TracLink system makes the Lintrac 130 the most intelligent vehicle from Lindner in its class.

At a glance

engine

Motor

PERKINS Syncro 904J-E36TA
100 kW (136 hp) / 530 Nm
4-cyl. / 3,600 cm³
Turbo diesel engine with particulate filter and SCR
Exhaust gas level 5
transmission

Transmission

TMT11.2 - ZF stepless transmission
40 or 50 km/h
active standstill control
Optional: Lindner rear axle steering with 4 steering modes
universalJointShaft

Power take off

Load-switchable rear PTO shaft
540 / 750 / 1,000 / 1,400 rpm
EHR with AHC
hydraulics

Hydraulics

Bosch Rexroth axial piston pump
4 to 88 l/min (100 l/m on request)
separate oil balance
dimensions

Dimensions

Width 2226mm
Height 2708mm
Wheelbase 2420 mm
  • engine

    Motor

    PERKINS Syncro 904J-E36TA
    100 kW (136 hp) / 530 Nm
    4-cyl. / 3,600 cm³
    Turbo diesel engine with particulate filter and SCR
    Exhaust gas level 5
  • transmission

    Transmission

    TMT11.2 - ZF stepless transmission
    40 or 50 km/h
    active standstill control
    Optional: Lindner rear axle steering with 4 steering modes
  • universalJointShaft

    Power take off

    Load-switchable rear PTO shaft
    540 / 750 / 1,000 / 1,400 rpm
    EHR with AHC
  • hydraulics

    Hydraulics

    Bosch Rexroth axial piston pump
    4 to 88 l/min (100 l/m on request)
    separate oil balance
  • dimensions

    Dimensions

    Width 2226mm
    Height 2708mm
    Wheelbase 2420 mm

Cabin

Cabin

The TracLink cab is designed for particularly long operating times - keeping the driver in good spirits.

The TracLink cab, which was upgraded for long-term use, makes a significant contribution to the high driving comfort of the Lintrac 130. The cab is available with air suspension on request, and new comfort seating has also been installed. The spring-loaded front axle is standard with the 50 km/h version. With the new Touch I.B.C. monitor PRO, Lindner brings the quality of a luxury sedan to the stepless tractor. Drivers can expect easy-to-understand menu guidance and a robust design for demanding jobs.

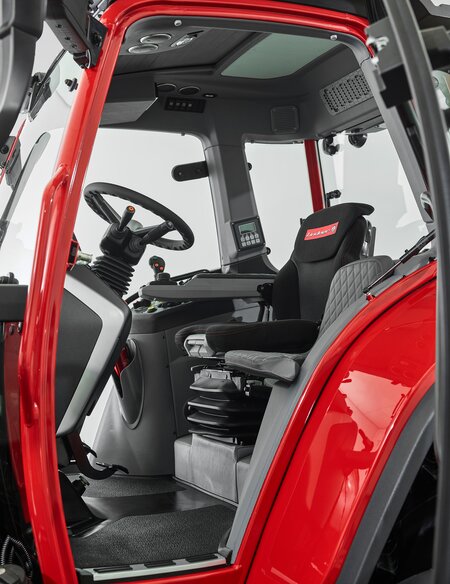

Comfort for driver and co-driver

Comfort for driver and co-driver

A driver's seat with low-frequency air suspension and the upholstered co-driver seat provide pleasant seating comfort in conjunction with the cab suspension. The flat cab floor makes cleaning a breeze.

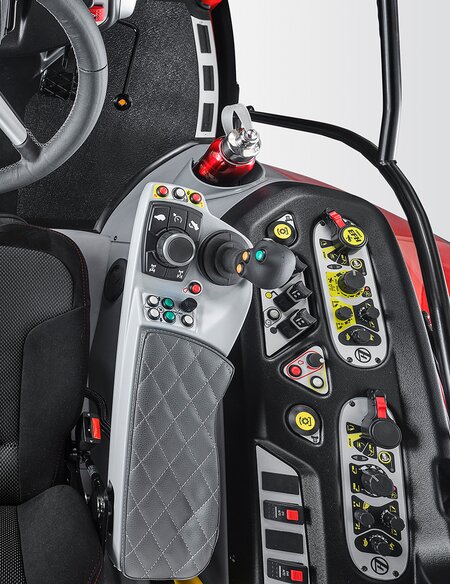

Three clearly arranged operating areas

Three clearly arranged operating areas

The operating elements have been reduced to the essentials and are fitted in the instrument panel, the armrest and the side control console.

Storage space and air-conditioning system

Storage space and air-conditioning system

The side storage compartment is also cooled by the air-conditioning system. With cup holders, a mobile phone tray and the seat compartment, there is space for everything.

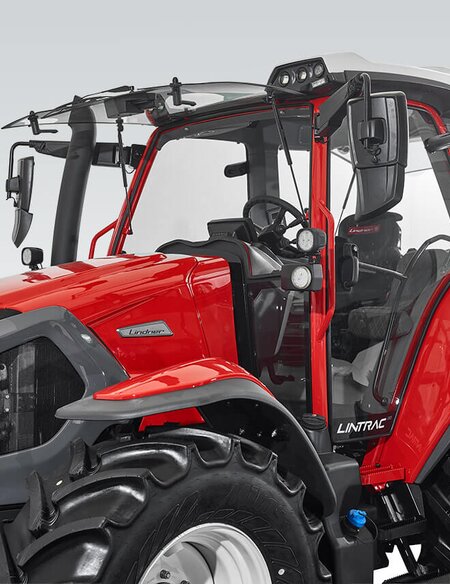

Opening windows - front loader with clear view

Opening windows - front loader with clear view

The front, rear and side windows can be opened. The large front loader clear-view window guarantees optimum visibility from the ground to the maximum unloading height.

LED arc

LED arc

The LED tail light arc on the Lintrac 130 ensures optimum visibility at night.

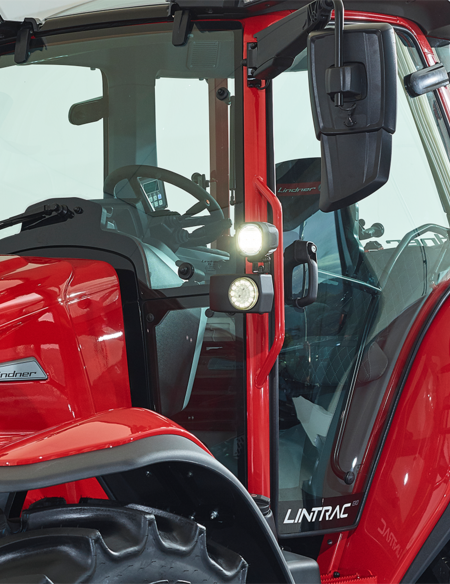

LED light technology

LED light technology

On request, the entire lighting technology of the Lintrac 130 is available in economical and bright LED lighting technology. From high beam and low beam to side lights and working lights, comfortable working is guaranteed even in the dark.

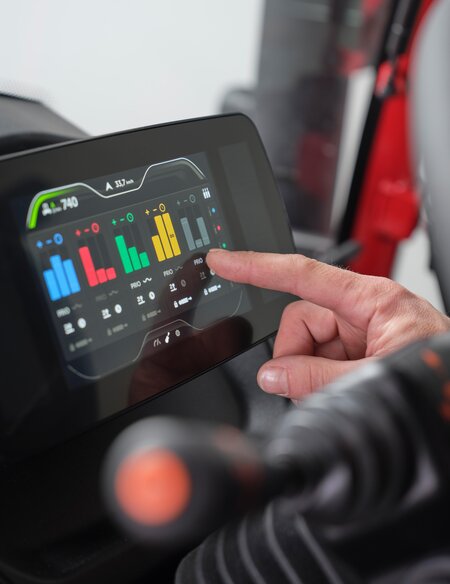

I.B.C. Monitor Pro

I.B.C. Monitor Pro

With the new Touch I.B.C. monitor PRO, Lindner brings the quality of a luxury sedan to the stepless tractor. Drivers can expect easy-to-understand menu guidance and a robust design for demanding jobs.

Lindner LDrive
Lindner LDrive

Get in and drive!

Get in and drive: Every driver is a professional with the simple control dial. It is easy to drive the Lintrac: Start the engine, pick the direction, step on the gas and steer. Using the LDrive control dial on the armrest makes for very efficient work.

If the LDrive is activated, rotating the dial sets the speed of travel in a dynamic and infinitely variable manner. Rapid selection buttons are provided for all-wheel, differential, cruise-control memory, creep function, hand & foot accelerator mode and the various driving modes.

Lindner LDrive Controls Lindner LDrive Hand

Motor

The Perkins Syncro with 3.6 litres capacity delivers 100 kW / 136 hp. It offers an enormous torque of 530 Nm at 1,500 rpm with a very steep torque increase of over 40%. These properties ensure powerful starting behaviour on slopes and when pulling. In conjunction with the TMT transmission, the engine can operate at reduced speed, making it particularly fuel-efficient. The particulate filter achieves exhaust level 5. This is comparable with the EURO 6 emissions class applicable to cars and trucks.

Perkins high-performance unit

  • more power
  • more torque
  • more capacity
  • lower consumption
  • less exhaust
  • less noise and vibration
  • easy to maintain

Transmission

TMT11.2 - ZF stepless transmission

TMT11.2 - ZF stepless transmission

Lindner has further developed the stepless TMT11-ZF transmission from the Lintrac 110. One of the new features is the active standstill control. The high traction mode increases the tractive force to up to eight kilonewtons. The transmission is particularly efficient due to the largely mechanical power transmission with low hydrostatic content. The driving speed is stepless from -20 to +43 km/h (optionally up to +50 km/h) with reduced rpms. The 4-speed rear PTO shaft with start-up control works with 540/750/1,000/1,400 rpms.

TMT11.2 - ZF stepless transmission
TMT11.2 - ZF stepless transmission

Hydraulics

Bosch Rexroth axial piston pump

Bosch Rexroth axial piston pump

The Lintrac operates with an axial piston pump, which regulates the hydraulic power steplessly from 4 to 88 l/min (optionally also 100 litres). The exact amount of oil required is conveyed at all times. This eliminates power losses. It is operated via the multifunction joystick on the LDrive armrest. The front hydraulics are available with EFH and EFD: the electronic front pressure control regulates lift and pressure when working with the snow plough. The electronic linkage control EHR in the Lintrac 130 is equipped with AHC. As with all Lindner vehicles, the Lintrac has a separate oil supply for the power hydraulics/steering and the transmission.

Bosch Rexroth axial piston pump
Bosch Rexroth axial piston pump

4-wheel steering

The steering rear axle enables unprecedented maneuverability.

track The steering rear axle enables unprecedented maneuverability. 20°

The Lintrac is the first standard tractor with a steering rear axle. During the development, Lindner was able to build on decades of experience with 4-wheel steering in mountain farming and municipal use with the Unitrac transporter. Extremely stable joint housings made of spheroidal graphite iron are used here. On request, the rear axle can steer up to 20 °, giving the Lintrac a maneuverability that was previously unattainable for tractors.

The Lintrac is extremely manoeuvrable even without a steering rear axle. Thanks to the compact wheelbase and 52 ° steering angle at the front, it achieved a turning circle diameter of 9.5 m. With 4-wheel steering, a sensational turning circle diameter of less than 7 m is achieved. The rear wheels are turned up to 20 °. “Crab steering” is also possible. (Measured with tires 480/70-R28 at the rear and 420/65-R20 at the front on the Lintrac 90)

track 20° The steering rear axle enables unprecedented maneuverability.

Light

Light Light

The Lintrac is equipped with LED rear lights, daytime running lights and LED work lights. The light-emitting diodes are particularly energy-saving and last the life of the tractor with over 20,000 operating hours.

In addition, the Lintrac has powerful bi-halogen headlights for high and low beam. The LED taillight arch on the Lintrac 110 & 130 ensures the best visibility at night.

Intelligent light

Bright H7 halogen or LED work lights are available on request. Extremely clearly visible LED all-round lights and lightning bars are used for municipal use. In order to draw attention to special applications, LED flashing lights are used that fit perfectly into the TracLink roof shell - without any disadvantages for the overall height.

LED roof lights

LED roof lights

LED work lights

LED work lights

LED headlights

LED headlights

Dimensions

Dimensions, tires & color selection

Dimensions Lintrac 130
Perm. total weight
8500 kg
Max. rear axle load
5000 kg
Max. front axle load
3500 kg
Wheelbase
2420 mm
Partial height (E)
1959 mm
Length (A) with standard tires
3808 mm
External width (B) with standard tires
2226 mm
Height (C) with standard tires
2708 mm

All information relates to the version with rear-axle steering - please refer to the brochure for dimensions without rear-axle steering.

Dimensions Lintrac 130
Rear tires Front tires Track (D) Outside width (B) height (C)
600/65-30 425/75-20 1700 2270 2690
420/85-34 380/70-24 1700 2112 2717
480/70-34 380/70-24 1750 2126 2709
540/65-34 440/65-24 1700 2226 2708
600/65-34 480/65-24 1700 2272 2739
420/85-38 380/85-24 1700 2165 2769
540/65-38 480/65-24 1700 2217 2758

Color RAL-Nr. 3001

Lintrac 130 Color RAL-Nr. 3001
